Weight Quantization

typically a size of a model is calculated by mutliplying:

the number of parameters
- by the precision of these values

to save memory, weights can be stored using lower-precision data through quantization

Post-Training Quantization PTQ

The weights of an already trained model are converted to a lower precision
- without necessitating any retraining

potential performance degradation

Quantization-Aware Training QAT

the weight conversion process during the pre-training or fine-tuning stage
- results in enhanced model performance

computationally expensive and needs representative training data

Floating Point Representation background

balancing precision and computational performance
typically a floating point number uses \(n\) bits to store a numerical value
- \(n\) bits are further partitioned into 3 distinct components
  - sign
    - indicates postive or negative nature of the number
      - using one bit
  - exponent
    - a segment of bits that represents the power to which the base is raised
      - can also be positive/negative allowing the number to represent very small/large values
  - significand/mantissa
    - remaining bits are used to represent the significant digits of the number
      - the precision of the number heavily depends on the length of the significand

        formula \((-1)^{sign}\times base^{exponent} \times significand\)

common datatypes

FP32 -> 32 bits
- 1 sign bit, eight for exponent, and remaining 23 for significand
  - high precision and high computational footprint
FP16 -> 16 bits
- 1 sign bit, 5 for the exponent, 10 for the significand
  - computation efficient and potential numeric stability
BF16 -> 16 bits
- 1 sign bit, 8 for the exponent, 7 for the significand
  - expands representable range
    - often useful compromise in deep learning

Naive 8-bit Quantization

the goal is to map an FP32 tensor \(\mathcal{X}\) (original weights)

to an INT8 tensor \(\mathcal{X}_{quant}\) (quantized weights)

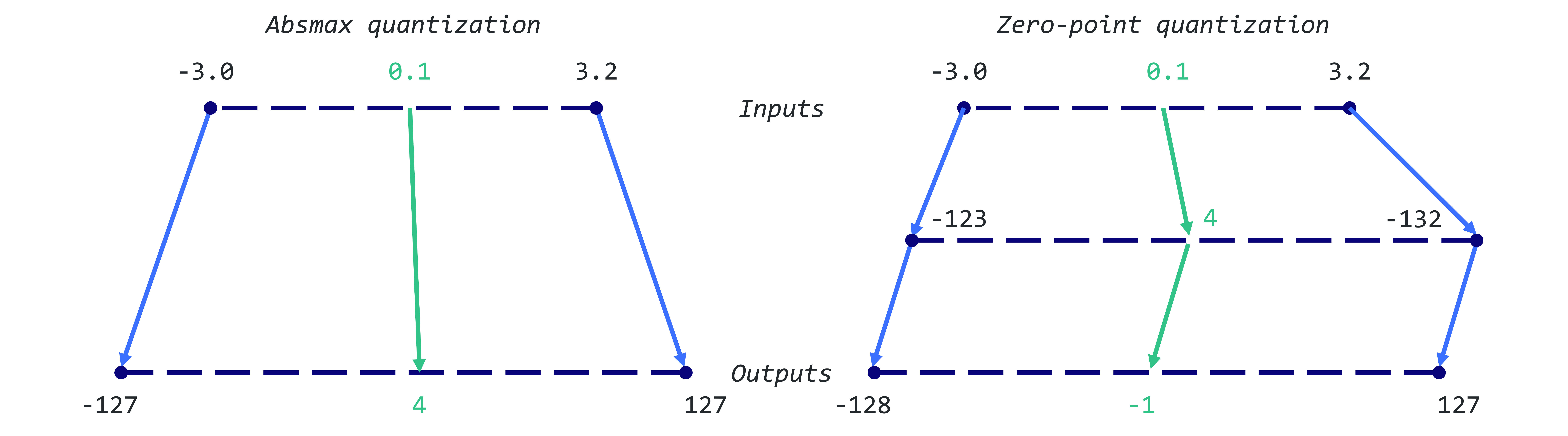

absmax quantization

the original number is divided by absolute maximum value of the tensor

and multiplied by a scaling factor (127) to map inputs into the range [-127,127]
- to retrieve the original FP16 values,
  - the INT8 number is divided by the quantization factor
    - acknowledging some loss of precision due to rounding

      \(X_{quant} = round(\frac{127}{max|X|}\cdot X)\)

      \(X_{dequant} = \frac{max|X|}{127} \cdot X_{quant}\)
      import torch def absmax_quantize(X): # Calculate scale scale = 127 / torch.max(torch.abs(X)) # Quantize X_quant = (scale * X).round() # Dequantize X_dequant = X_quant / scale return X_quant.to(torch.int8), X_dequant

zero-point quantization

we can consider asymmetric input distributions

which is useful when you consider the output of a ReLU function (only positive)

the input values are first scaled by the total range of values (255)

divided by the difference between the maximum and minimum values

this distribution is then shifted by the zero-point

to map it into the range [-128, 127]

first we calculate the scale factor and zero point value

\(scale = \frac{255}{max(X)-min(X)}\) \(zeropoint = -round(scale \cdot min(X)) - 128\)

then we can use these variables to quantize or dequantize our weights

\(X_{quant} = round(scale \cdot X + zeropoint)\) \(X_{dequant} = \frac{X_{quant}-zeropoint}{scale}\)

def zeropoint_quantize(X):
    # Calculate value range (denominator)
    x_range = torch.max(X) - torch.min(X)
    x_range = 1 if x_range == 0 else x_range

    # Calculate scale
    scale = 255 / x_range

    # Shift by zero-point
    zeropoint = (-scale * torch.min(X) - 128).round()

    # Scale and round the inputs
    X_quant = torch.clip((X * scale + zeropoint).round(), -128, 127)

    # Dequantize
    X_dequant = (X_quant - zeropoint) / scale

    return X_quant.to(torch.int8), X_dequant
