Message Passing Interface

  • message passing is type of communication between two or more processes or objects
    • in this model, the communicating entities can send/receive messages containing signals, functions, complex data structures, or data packets (to/from) each other

message invokes behavior or run a program

  • different from method calling
    • it is based on the object model
      • which separates the general functional need from the specific implementation
  • the program that needs the functionality calls an object and that object runs the program

communication can happen between different applications' objects, threads, processes running on the same node or different processes running on different nodes INTER-PROCESS COMMUNICATION

MP can be used as a more process-oriented to synchronization than the data-oriented approach used in providing mutual exclusion for shared resources

  • used in parallel programming on parallel computer architectures and connection through networks

    paradigm not affected by diff architectures it works on or the size and speed of its connecting networks Virtualization

MP has 2 main dimensions

  • synchronous vs. asynchronous
  • symmetric vs. asymmetric

MPIF

goals

  • design portable API with parallel processing computer architectures
    • and reflect the needs of programmres
  • semantics of interface is language independent
  • credible parallel computing
  • provide virtual computing model
    • that hides architecture differences
    • and allows execution on hetergeneous systems
      • e.g. MPI impl will automatically do any necessary data conversion
        • and utilize the correct communications protocol
  • make efficient MPI implementations possible
    • without significant changes in the underlying communication and system software
  • scalability
    • e.g. app can create subgroups of processes
      • that allow collectivee communication operations to limit their scope to the processes involved
  • relieve the programmer of coping with communication failures
  • models of communication A. point-to-point
    • one system passing message directly to another
    B. collective
    • one system passing message to a group
  • typing of the message contents using tags
    • necessary for heterogeneous support
  • process groups/communicators, the world where processes live in
    • and are aware of each other
  • intracommunicator
  • intercommunicator

various MPI impls

  • MPICH, Open MPI, Microsoft MPI

libraries are called bindings which extend MPI support to other languages by wrapping an existing MPI implementation

e.g. `mpi4py` provides binding of MPI standard for Python

  • constructed on top of MPI-1/2/3 specifications
  • provides OO interfaces resembling MPI-2 C++ bindings
  • supports p2p, collective communications for Python object
    • exposing the single-segment buffer interface (standard offered by python)

Communicator

An MPI communicator specifies the communication context for a communication operation

it specifies the set of processes which share the context, and assigns each process a unique rank taking an integer value in `0:n-1`, where `n` is the number of processes in the communicator

Point-to-point Communication

  • to send a message from a process to another
    • we use the communicator send function
  • send takes the buffer name and the message destination

Collective Communication

Synchronous

Asynchronous

Symmetric

Asymmetric

MPI.jl

basic Julia wrapper for the portable message passing system Message Passing Interface (MPI).

Inspiration is taken from mpi4py, although we generally follow the C and not the C++ MPI API

mpi4py

MPI for Python provides MPI bindings for the Python programming language, allowing any Python program to exploit multiple processors.

This package build on the MPI specification and provides an object oriented interface which closely follows MPI-2 C++ bindings

Point-to-point commnunication

import numpy
from mpi4py import MPI
comm = MPI.COMM_WORLD
rank = comm.Get_Rank()
randNum = numpy.zeroes(1)

if rank == 1:
    randNum = numpy.random.random_sample(1)
    comm.Send(randNum, dest=0)
if rank == 0:
    comm.Recv(randNum, source=1)

deadlock - process will never get touched

  • and will wait indefinitely

  • Comm.Send(buf, dest=0, tag=0)

    • tag extra identification for the message

MPISend has two behaviors and not dependent on the MPI implementation

  • MPI will not work the same way on two different systems

Send in MPI4PY does not block waiting for a confirmation from its paired=up `Recv` to happen

  • Comm.Recv(buf, source=0, tag=0, status=None)
    • Status is a structure that holds information about recieve process
      • to retrieve after the receive is done
        • the rank of the sender
        • the tag of the message
        • the length of the message

Message Matching

  • there are a few conditions for message send with `Sent` to be receieved
    • `recvcomm`

Recv Wildcards

`source=MPI.ANYSOURCE`

  • allow you to handle situations where mutliple messages can be received from any source

Non-blocking communication

`req = comm.Isend(randNum, dest=0)` `req.Wait()`

  • ask it to wait for request

`comm.Irecv(randNum, source=1)` `while not req.Test():` `req.cancel()`

  • break and cancel the request

Collective communication

  • MPI allows processes to group communication

  • collective communications has its own blocking and non blocking functions

Synchronization

  • processes wait til all the members of the communicator rea

MPI Course by Rolf Rabenseifner

(for MPI-2.1, MPI-2.2, MPI-3.0, MPI-4.0,4.1, and MPI-5.0)

MPI overview

  • one program on several processors
  • work and data distribution
  • the communication network

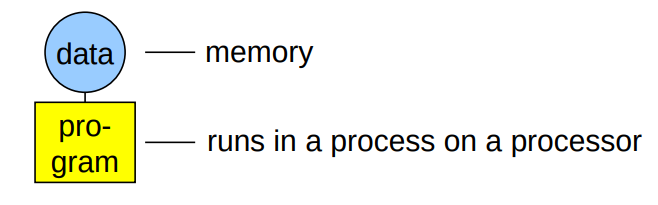

sequential programming paradigm

message-passing programming paradigm

Analogy: eletric installations in parallel

  • MPI subprogram = work of one electrician on one floor
  • MPI process on a dedicated hardware = the electrician
  • data = the electric installation
  • MPI communication = real communication to guarantee that the wires are coming at the same position through the floor

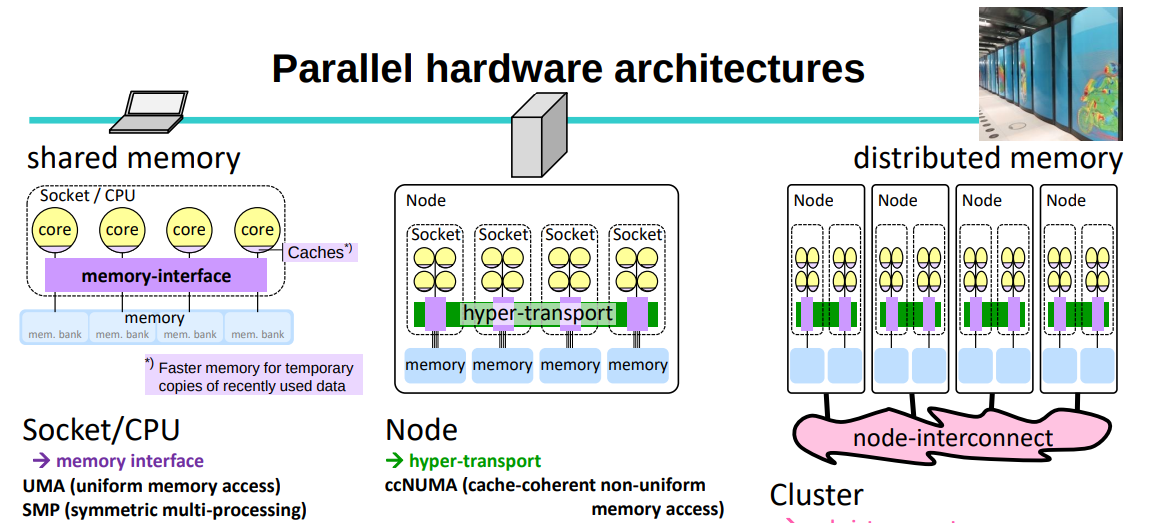

Parallel hardware architectures

  • shared memory programming with OpenMP

    Socket/CPU

    • memory interface

    uniform memory access (UMA) symmetric multi-processing (SMP)

    • all cores connected to all memory banks with same speed

    parallel execution streams on each core

    • e.g. $x[ 0 … 999] = …$ on 1st core $x[ 1000 … 1999] = …$ on 2nd core $x[ 2000 … 2999] = …$ on 3rd core

    Node

    • hyper-transport ccNUMA (cache-coherent non-uniform memory access)
    • shared memory programming is possible!

    \(CPUs \times memory bandwidth\)

    • performance problems
      • each parallel execution stream should mainly access the memory of its CPU
    • first touch strategy is needed to minimize remote memory access
    • threads should be pinned to the physical sockets

  • distributed memory (MPI works everywhere)

    Cluster

    • node-interconnect NUMA (non-uniform memory access)
      • fast access only on its own memory!
    • many programming options
      • shared mem / symmetric multi-processing inside of each node
      • distributed memory parallelization on the node interconnect
      • or simply one MPI process on each core

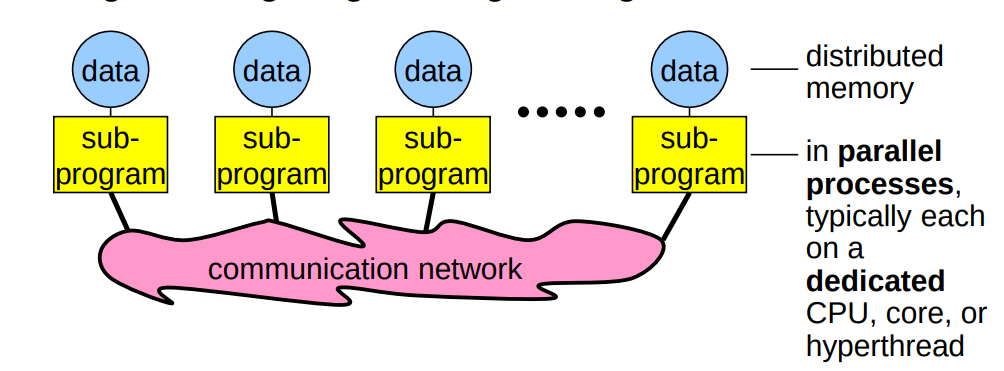

Message-passing programming paradigm

  • each processor in a message passing program runs a sub-program
    • written in a conventional sequential language
      • e.g. C, fortran, Python
    • typically the same on each processor (SPMD)
    • the variables of each subprogram have
      • same name
      • different locations (distributed mem) and different data
      • i.e. all variables are private
    • communicate via special send and receive routines

Caution! completely different model compared to

  • OpenMP
  • Python with concurrent futures
  • pthreads, shmem

Data and work distribution

  • the value of `myrank` is returned by special library routine
  • the system of `size` processes is started by special MPI initialization program (`mpirun` or `mpiexec`)
  • all distributions decisions are based on `myrank`
  • i.e. which process works on which data

SPMD

  • single program multiple data
    • same subprogram runs on each processor
  • mpi allows MPMD
    • but some vendors may be restricted to SPMD
    • MPMD can be emulated with SPMD

  • Emulation of MPMD

    main(int argc, char **argv)
    {
        if(myrank < .../*process should run the ocean model*/)
        {
            ocean(/*arguments*/);
        } else {
            weather(/*arguments*/);
        }
    }

    PROGRAM
IF (myrank < ...) THEN !! process should run the ocean model
      CALL ocean( some arguments )
ELSE
      CALL weather (some arguments )
ENDIF
END

    if (myrank < ...): # process should run the ocean model
    ocean(...)
else:
    weather(...)


    if myrank < ...
    ocean(...)
else
    weather(...)
end

Process model and language bindings

Messages and point-to-point communication

Nonblocking communication

Fortran module mpif08

Collective communication

Error handling

Groups & Communicators, Environment Management

Virutal topologies

One-sided communication

Shared memory One-sided communication

Derived datatypes

Parallel File I/O

MPI and Threads

Probe, Persistent Requests, Cancel

Process Creation and Management

Miscellaneous MPI

Parallelization, Performance, and Pitfalls

Heat example

Summary
